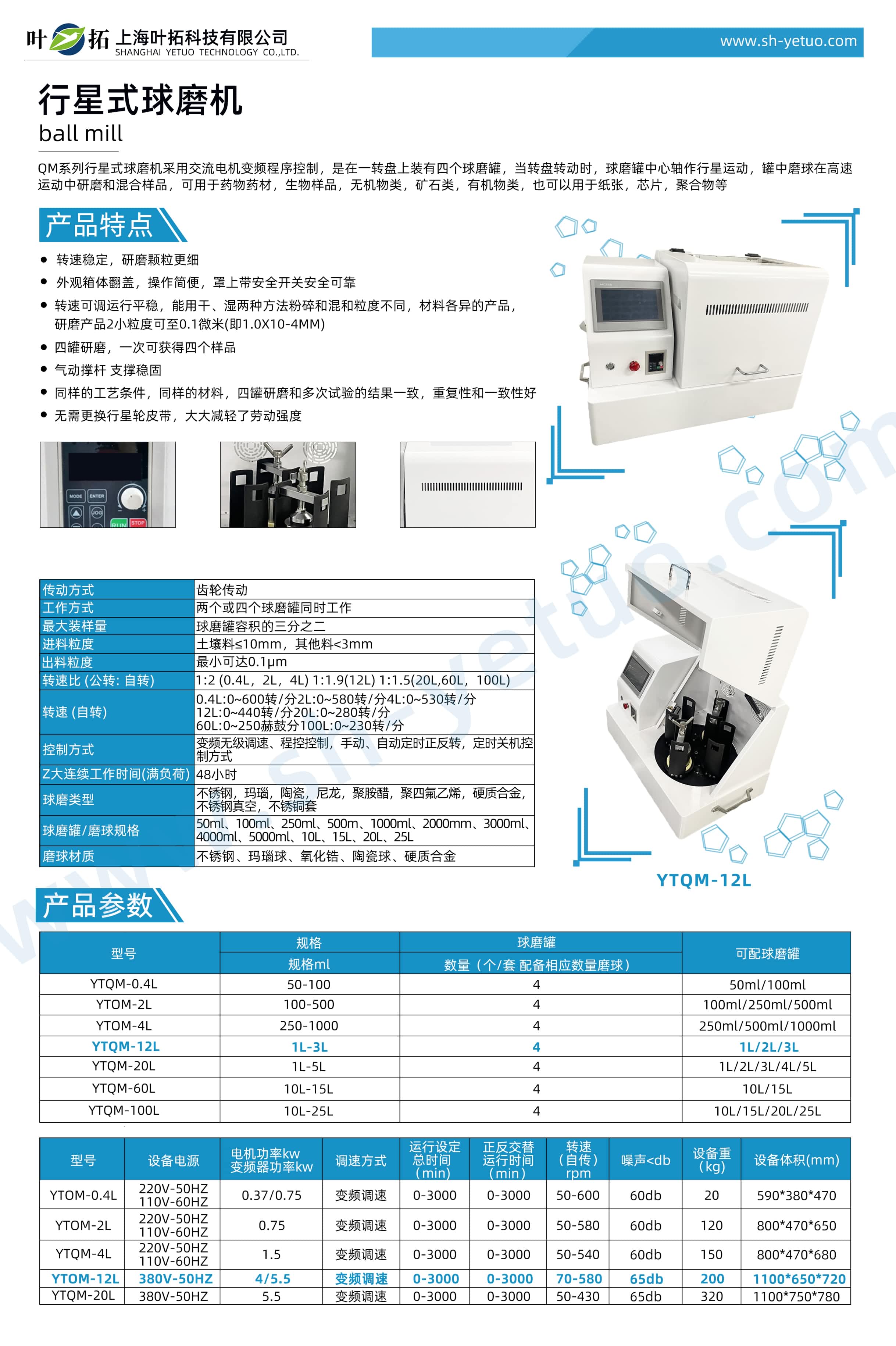

Model: YTQM-12L
Specification: 12L
Ball milling tank: 4
Can be equipped with ball milling tank: 1L/2L/3L
Equipment power supply: 380V/50HZ
Motor power: 4/5.5kw
Speed regulation method: variable frequency speed regulation
Total time set for operation: 0-3000min
Forward and backward alternating running time: 0-3000min
Speed (self rotation): 70-580rpm
Noise<db: 65db
Equipment weight: 200kg
Equipment volume: 1100 * 650 * 720 (mm)
Transmission method: gear transmission
Working mode: Two or four ball milling tanks working simultaneously
Maximum sample size: two-thirds of the volume of the ball milling tank
Feed particle size: soil material ≤ 10mm, other materials<3mm
Discharge particle size: minimum up to 0.1um
Speed ratio (revolution: rotation): 1:1.9 (12L)
Control method: variable frequency stepless speed regulation, program control, manual and automatic timing for forward and reverse rotation, and timed shutdown
Z continuous working time (full load): 48 hours
